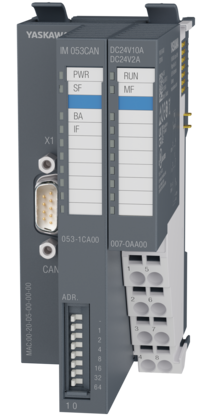

IM 053 - CANopen Slave - 053-1CA00

• Spannungsversorgung
• 24 V

• Eingangsspannung
• x Nein

• Current Consumption
• 0.95 A

• Max. current drain at backplane bus
• 3 A

• Max. current drain load supply
• 10 A

• Current consumption from backplane bus
• x Nein

• Current consumption from load voltage L+ (without load)
• x Nein

• Power Loss
• 3 W

• Number of inputs (digital)
• x Nein

• Rated load voltage (digital)
• x Nein

• Current consumption from load voltage L+ (without load)
• x Nein

• Signal logic input (digital)
• x Nein

• Input characteristic curve (digital)
• x Nein

• Initial data size (digital)
• x Nein

• Number of outputs (digital)
• x Nein

• Rated load voltage (digital output)
• x Nein

• Current consumption from load voltage L+ (without load)
• x Nein

• Signal logic output (digital)
• x Nein

• Output data size (digital)
• x Nein

• Number of inputs (analog)
• x Nein

• Rated load voltage (analog)
• x Nein

• Current consumption from load voltage L+ (without load)
• x Nein

• Voltage inputs (analog)
• x Nein

• Current inputs (analog)
• x Nein

• Resolution in bit
• x Nein

• Measurement principle
• x Nein

• Basic conversion time
• x Nein

• Initial data size
• x Nein

• Number of outputs (analog)
• x Nein

• Output voltage ranges
• x Nein

• Output current ranges
• x Nein

• Resolution in bit (analog)
• x Nein

• Conversion time (analog)
• x Nein

• Output data size (analog)
• x Nein

• Number of counters
• x Nein

• Counter width
• x Nein

• Maximum input frequency
• x Nein

• Maximum count frequency
• x Nein

• Maximum count frequency
• x Nein

• Maximum count frequency
• x Nein

• Maximum count frequency
• x Nein

• Number of channels
• x Nein

• Input voltage (rated value)
• x Nein

• Power stage
• x Nein

• PWM frequency
• x Nein

• Geber-Typ
• x Nein

• Geber-Frequenz
• x Nein

• Interne Geber-Auflösung
• x Nein

• Control type
• x Nein

• Terminal voltage max.
• x Nein

• Terminal current max.
• x Nein

• Total current per module, max.
• x Nein

• Number of clamps
• x Nein

• Binding of potential
• x Nein

• Point-to-point protocol
• x Nein

• Encoder Supply: Number of outputs (L+n)
• x Nein

• Rated output current
• x Nein

• Port mode
• x Nein

• Load memory, integrated
• x Nein

• Work memory, integrated
• x Nein

• Work memory, maximal
• x Nein

• Memory card slot
• x Nein

• Racks, max.
• 1

• Modules per rack, max.
• x Nein

• Fieldbus
• CANopen

• Connector
• Sub-D 9-pin male

• Topology
• Linear bus with bus termination at both ends

• Transmission speed, max.
• 1 Mbit/s

• Address range inputs, max.
• 128 Byte

• Address range outputs, max.
• 128 Byte

• Material
• PPE / PPE GF10

• Montage
• Profile rail 35 mm

• Breite
• 48.5 mm

• Höhe
• 109 mm

• Tiefe
• 76.5 mm

• Nettogewicht
• 162.5 g

• Bruttogewicht
• 180 g

• Zertifizierungen
• UL, KC, UKCA, China RoHS

• Safety protocol
• x Nein

• Safety requirements
• x Nein

• Circuit monitoring
• x Nein

• Max. Betriebstemperatur
• 60 °C
